 Oil Press 25.09.2002

Oil Pressure Indicator

The Oil Pressure Indicator shows the actual pressure in the aircraft´s engine. This delivered data should be watched carefully, as too low or too high pressures could damage the engine. This indicator is located at the top in the right side of the center console.

The indicator

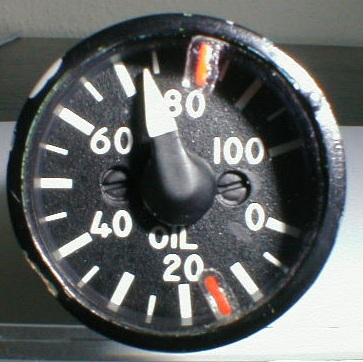

Pictures from the Oil Pressure Indicator


The Indicator

Oil Press

Note:
The showed panel drawing is a drawing with can be downloaded from my page Documents, plans and diagrams from the F-16.

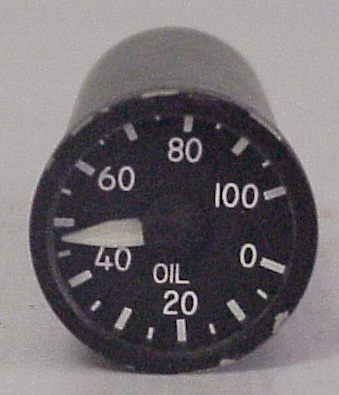

Pictures from the Oil Pressure Indicator



Note:
To zoom please select the picture with your mouse.
