Fuel Quantity Selector

Über das Fuel Quantity Selector Panel wird die unter anderem auch die Anzeige auf dem Fuel Gauge gesteuert. Das Fuel Quantity Selector Panel befindet sich auf der Center Console.

Das Panel und seine Elemente
Das Treibstoffsystem
Bilder des Fuel Quantity Selector Panels


Das Panel und seine Elemente

Fuel QTY Sel


Element Type Position Information
FUEL QTY SEL Rotary switch
(6x45 deg)
TEST Test the display, digits should show 6000 lbs of fuel, and both dial indicators should point to 2000 lbs
NORM One gauge indicates the F/R amount, and the other the L/A quantity of internal fuel
RSVR Show the amounts in the Fwd/Aft reservoirs
INT WING Shows the amount of fuel in the right/left internal wing tanks
EXT WING Shows the amount of fuel stored in any external wing tanks
EXT CENTER Shows the amount of fuel stored in any centerline tank
EXT FUEL TRANS 2-Way switch NORM Fuel transfer from centerline tank first, then from the external wing tanks
WING FIRST Fuel transfer from external wing tanks first, than from the centerline tank

Anmerkung:
Die obige Panelzeichnung ist Bestandteil einer Cockpitzeichnung, die du auf meiner Seite Dokumente, Pläne und Checklisten der F-16 herunterladen kannst.


Das Treibstoffsystem

Fuel system

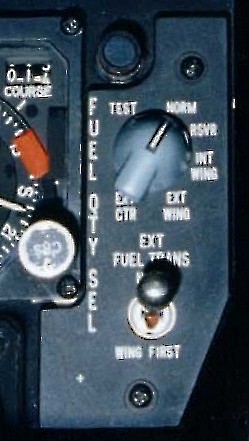

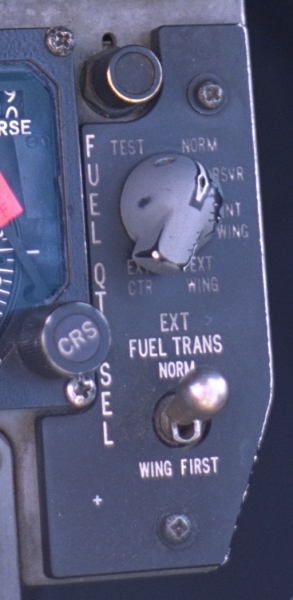

Bilder des Fuel Quantity Selector Panels


Anmerkung:
Zum Vergrössern bitte mit der Maus auf das gewünschte Bild klicken.
