 Avionics Power 20.02.2010

Avionics Power Panel

Über das Avionics Power Panel wird die Stromversorgung der Einzelsysteme ein- und ausgeschaltet, wohingegen sich der Hauptstromversorgungsschalter auf dem ELEC Panel auf der Left Console befindet. Das Avionics Power Panel befindet sich auf der Right Console.

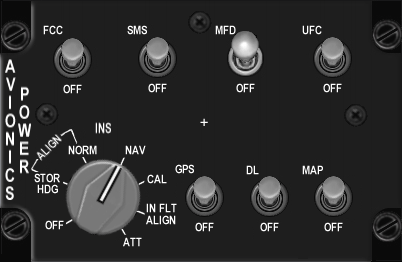

Das Panel und seine Elemente (Block 25, 30/32, 40/42, 50/52 bis 1996)

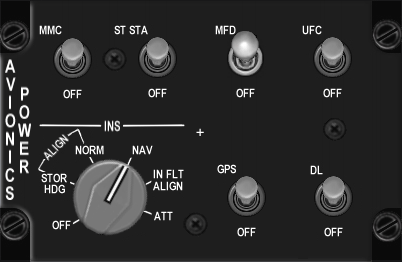

Das Panel und seine Elemente (Block 50/52 aktuell, MLU)
Zeichnungen des Avionics Power Panels
Bilder des Avionics Power Panels


Das Panel und seine Elemente (Block 25, 30/32, 40/42, 50/52 bis 1996)

Avionics Power


Element Type Position Information
FCC 2-Way switch FCC Power on the Fire Control Computer (FCC), HSD display on HUD
OFF Power off the Fire Control Computer (FCC)
SMS 2-Way switch SMS Power on the Stores Management System (SMS)
OFF Power off the Stores Management System (SMS)
MFD 2-Way switch MFD Power on the Multi Function Displays (MFDs)
OFF Power off the Multi Function Displays (MFDs)
UFC 2-Way switch UFC Power on the Up Front Controls (UFC=DED) and ICP)
OFF Power off the Up Front Controls (UFC)
INS Rotary switch OFF Power off the Interial Navigation System (INS)
STOR HDG Aligns the INS using a pre-computed heading (computed at last shutdown)
NORM Normal startup and initialisation of the INS
NAV Normal operating mode of the INS
CAL Calibrate INS
IN FLT ALIGN After a total power loss in flight or switch the INS to OFF, turn to this position. The INS will then use GPS information to re-align itself.
ATT ?
GPS 2-Way switch GPS Power on the Global Position System (GPS)
OFF Power off the Global Position System (GPS)
DL 2-Way switch DL Power on the Datalink (DL), required to Datalink wingman positional data and JSTAR updates
OFF Power off the Datalink (DL)
MAP 2-Way switch MAP Power on Terrain Map
OFF Power off Terrain Map

Anmerkung:
Die obige Panelzeichnung ist Bestandteil einer Cockpitzeichnung, die du auf meiner Seite Dokumente, Pläne und Checklisten der F-16 herunterladen kannst.


Das Panel und seine Elemente (Block 50/52 aktuell, MLU)

Avionics Power


Element Type Position Information
MMC 2-Way switch MMC Power on the Modular Mission Computer (MMC)
OFF Power off the Modular Mission Computer (MMC)
ST STA 2-Way switch SMS Power on the Stores Station System (ST STA)
OFF Power off the Stores Station System (ST STA)
MFD 2-Way switch MFD Power on the Multi Function Displays (MFDs)
OFF Power off the Multi Function Displays (MFDs)
UFC 2-Way switch UFC Power on the Up Front Controls (UFC=DED) and ICP)
OFF Power off the Up Front Controls (UFC)
INS Rotary switch OFF Power off the Interial Navigation System (INS)
STOR HDG Aligns the INS using a pre-computed heading (computed at last shutdown)
NORM Normal startup and initialisation of the INS
NAV Normal operating mode of the INS
CAL Calibrate INS
IN FLT ALIGN After a total power loss in flight or switch the INS to OFF, turn to this position. The INS will then use GPS information to re-align itself.
ATT Override mode; attitude gyro information is provided only, no position data
GPS 2-Way switch GPS Power on the Global Position System (GPS)
OFF Power off the Global Position System (GPS)
DL 2-Way switch DL Power on the Datalink (DL), required to Datalink wingman positional data and JSTAR updates
OFF Power off the Datalink (DL)

Anmerkung:
Die obige Panelzeichnung ist Bestandteil einer Cockpitzeichnung, die du auf meiner Seite Dokumente, Pläne und Checklisten der F-16 herunterladen kannst.

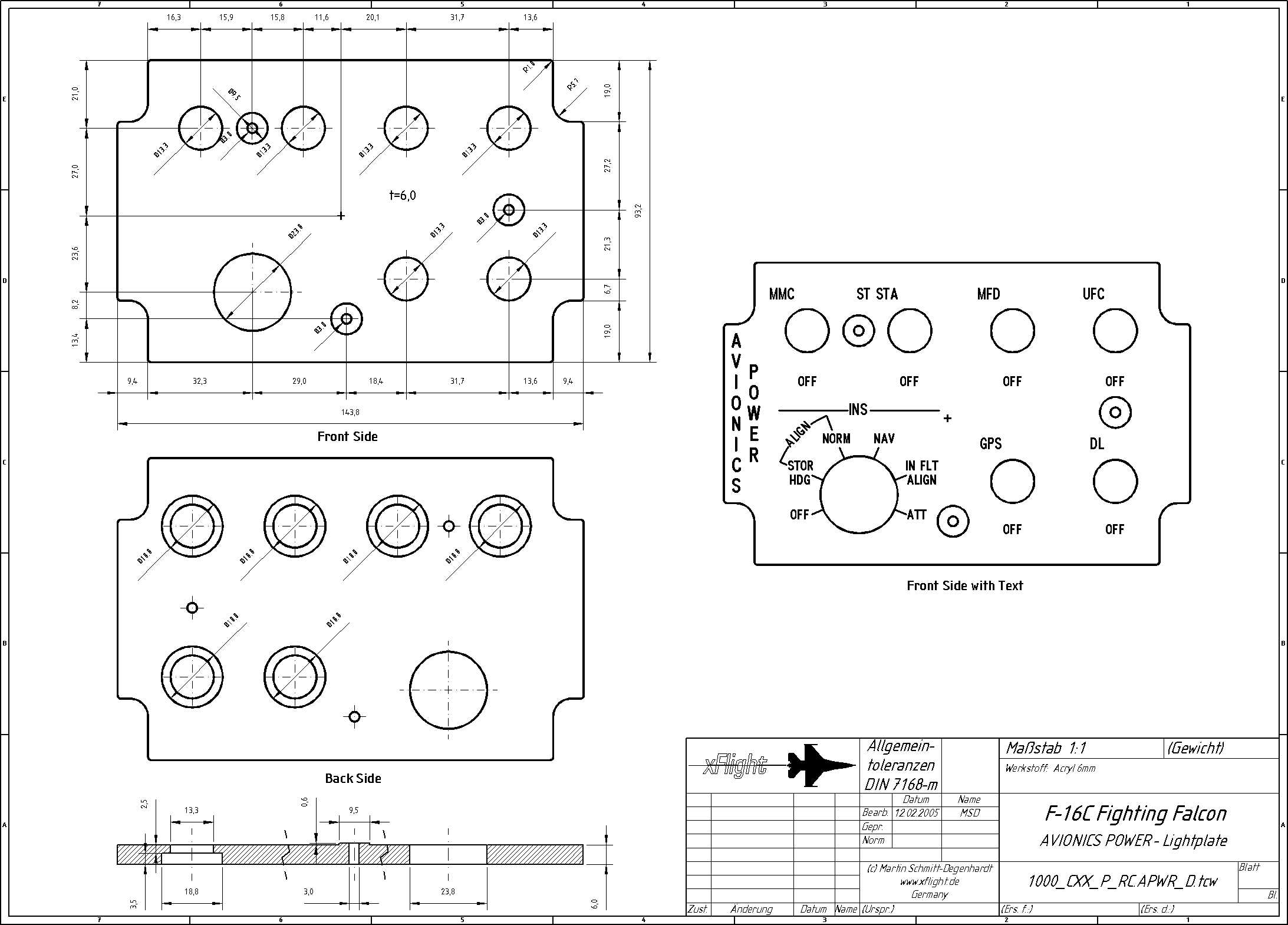

Zeichnungen des Avionics Power Panels


Anmerkung:
Zum Vergrössern bitte mit der Maus auf die gewünschte Zeichnung klicken.

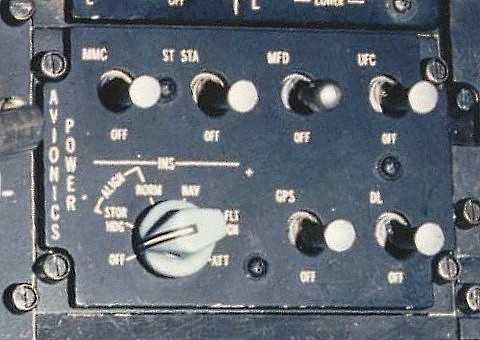

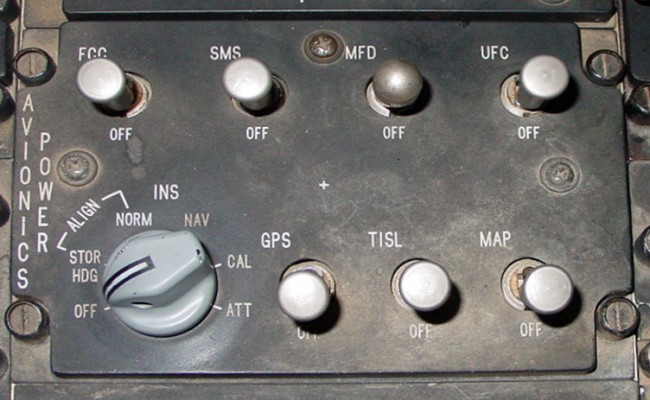

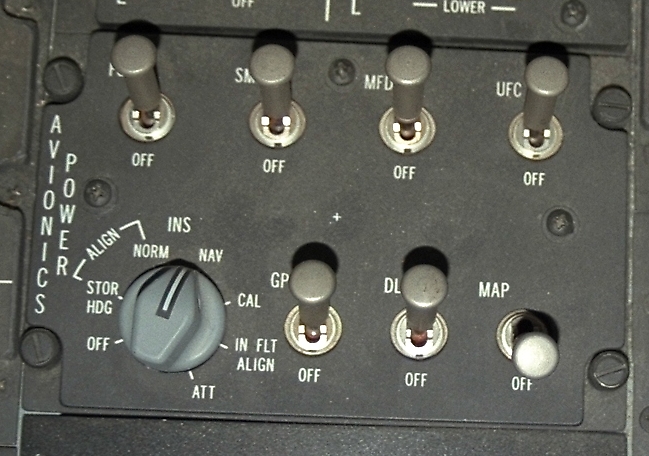

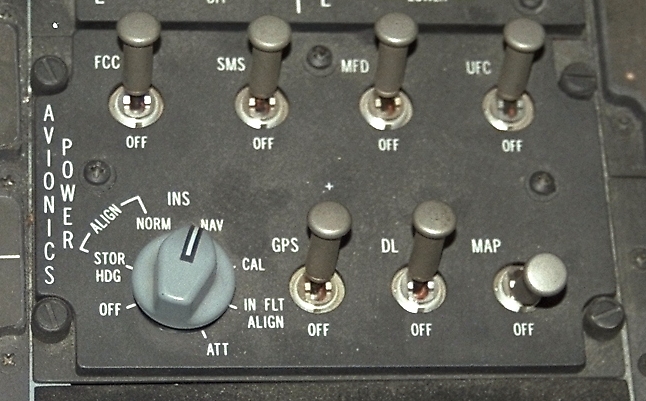

Bilder des Avionics Power Panels


25, 30/32, 40/42, 50/52 alt

25, 30/32, 40/42, 50/52 alt

25, 30/32, 40/42, 50/52 alt

25, 30/32, 40/42, 50/52 alt

50/52 aktuell, MLU


Anmerkung:
Zum Vergrössern bitte mit der Maus auf das gewünschte Bild klicken.

Quellen:
Bild Nr. 4 wurde von Kostas Kefalas zur Verfügung gestellt.
