Helm Mount Display Panel

The HMD panel controls the Helm Mount Dispay System (HMD) and is used only in the MLU version. The HMD System is a night vision camera on the top of the pilot helmet. The HMS panel is located in the lower part of the left aux. console.

The panel and his elements

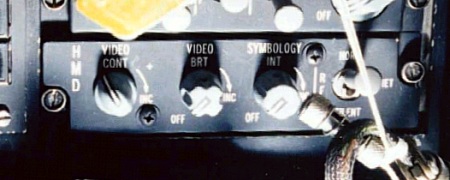

Pictures from the HMD Panel


The panel and his elements

HMD


Element Type Position Information
VIDEO CONT Rotary pot 0 - INC Video contrast
VIDEO BRT Rotary pot OFF - INC Video brightness
SYMBOLIC INT Rotary pot OFF - INC Symbol intensity
RF 3-Way switch NORM All radio transmissions are allowed
QUIET Most radio transmissions inhibited, some allowed
SILENT No radio transmissions are allowed

Note:
The showed panel drawing is a drawing with can be downloaded from my page Documents, plans and diagrams from the F-16.
